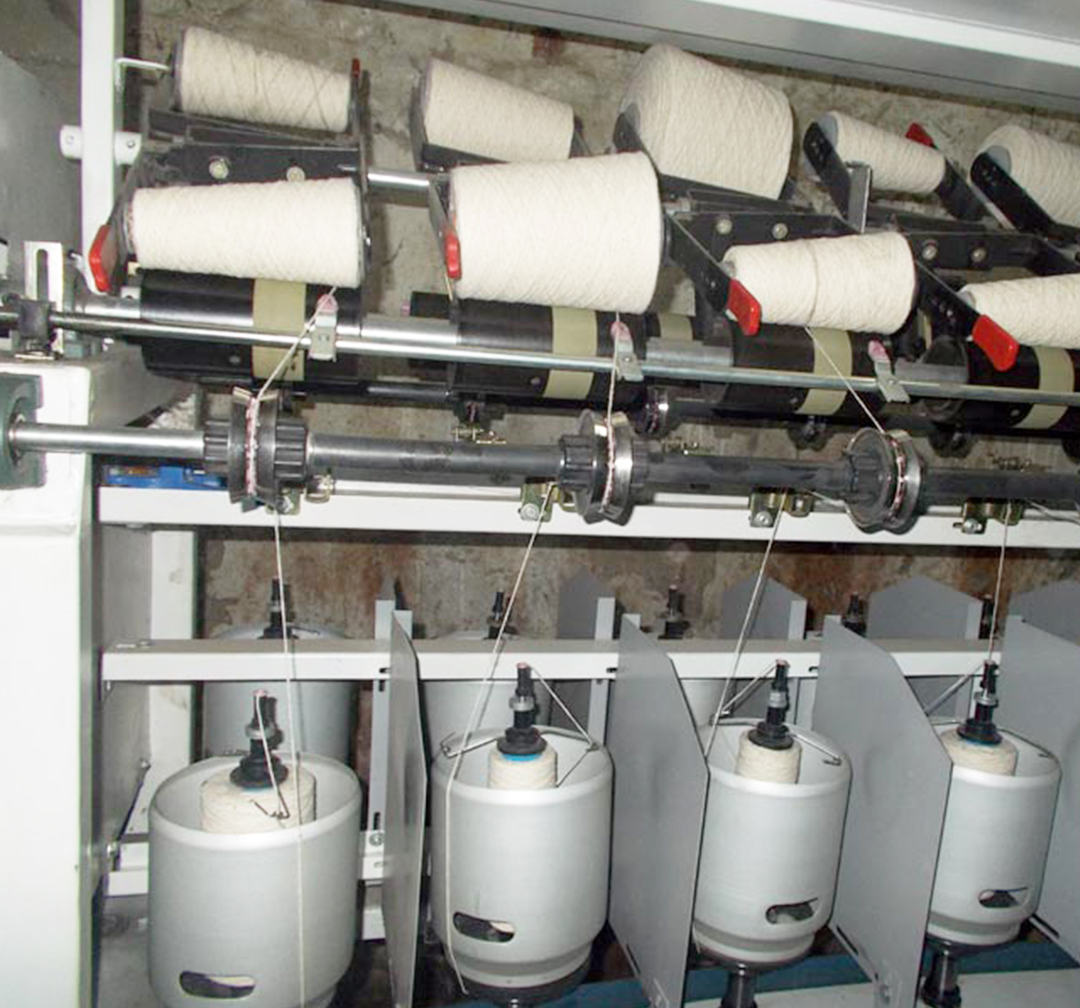

Spun/Cotton Yarn Twister Single Deck

Spun/Cotton Yarn Twister Single Deck Manufacturers in India

AlconeTex engineering pvt. ltd. is a renowned manufacturers & exporters of spun/cotton yarn twister single deck machines in Gujarat, India. Twisters stand as a testament to efficiency in yarn twisting. With a singular deck configuration, they streamline the twisting process, maximising productivity without compromising on quality. These machines boast precision engineering, ensuring consistent yarn output while minimising downtime.

Send an Enquiry
Download Catalogue

Single Deck Application:

The most flexible twister for a range of spun yarns is the spun tfo twister. Our spun twister is designed to increase production and efficiency with a range of features, such as a circular belt drive and an energy-efficient spindle design.

TFO Twister is ideal for:

  • Suitable for Wool, Viscose, Cotton, Acrylic, & Blended Yarns like PV, PC etc.
  • Suitable for variable Count ranges from Ne 2/2 to 2/140.
  • TPI range from 3 to 50 TPI
  • Final Package of up to 3kgs

Highlights:

  • All containers are made of a particular grade of stainless steel / Aluminium that is distressed during production to ensure that they do not crack over time.
  • Fine counts tend to rub against the containers, generating friction and stress on the yarns.
  • Traverse Gearbox helps to maintain the conacity of final package when performing operations at high speed.
  • The Cradle pressure mechanism guarantees uniform.
  • Pressure throughout the package, from zero to maximum diameter. By adjusting pressure as the diameter rises, this technique guarantees that bulges are avoided.
  • Individual foot brakes (Optional) quick doffing and decrease operator fatigue, maximising labour output and efficiency.
  • Before Overfeed, a dual de-tensioner is added to allow yarn winding tension to be adjusted based on package density requirements.

Technical Specification

Model: CTS-110/135
No. of Spindles 120 132 144 156 168 180
No. of Sections 10 11 12 13 14 15
Machine Length (FT.) 53.25 57.75 62.50 67.00 71.50 76.00
Power (HP) 5 5 7.5 7.5 10 10
Section Length 1383 MM SPINDLES PER SECTION 12
Spindle Pitch 217 MM
Take Up
Device Paper Tube 170 X I.D X O.D As Required
System Heavy Cradle / Jumper (Optional)
Capacity UP TO 2.400 KG
Feed I.D 32 X O.D 36 XL 170 MM Tube & Alu. Cops
Package Containar Dia 135 MM
Capacity UP TO 0.600 KG
SPINDLE SPECIFICATIONS
Pot Diameter 110 MM/120 MM As Optional
Pully Diameter 25 MM As Required
Pot Material S.S./Aluminum (Plasma Coating/ Nano Coating / Anodize
Spindle Drive Endless Belt
Traverse Mechanism Drum/Cam Based Traverse Gear Box For Uniform Pack
Size 145 To 156 Depends On Paper Tube Size
Feed Tensioner Device Ball & Ceramic Tensioning Pipe
Count Range 2/30 ΤΟ 2/100 Count
Viable ΤΡΙ Range 6 Το 50 ΤΡΙ (S&Z TWIST) As Required
Spindle RPM 4000 To 12000 RPM Depends On Yarm
Machine Width 813 MM
Machine Height 1610 MM
Model: CTS-110/135
No. of Spindles 120 132 144 156 168 180
No. of Sections 10 11 12 13 14 15
Machine Length (FT.) 53.25 57.75 62.50 67.00 71.50 76.00
Power (HP) 5 5 7.5 7.5 10 10
Section Length 1383 MM SPINDLES PER SECTION 12
Spindle Pitch 217 MM
Take Up
Device Paper Tube 170 X I.D X O.D As Required
System Heavy Cradle / Jumper (Optional)
Capacity UP TO 2.400 KG
Feed I.D 32 X O.D 36 XL 170 MM Tube & Alu. Cops
Package Containar Dia 135 MM
Capacity UP TO 0.600 KG
Spindle Specifications
Pot Diameter 110 MM/120 MM As Optional
Pully Diameter 25 MM As Required
Pot Material S.S./Aluminum (Plasma Coating/ Nano Coating / Anodize
Spindle Drive Endless Belt
Traverse Mechanism Drum/Cam Based Traverse Gear Box For Uniform Pack
Size 145 To 156 Depends On Paper Tube Size
Feed Tensioner Device Ball & Ceramic Tensioning Pipe
Count Range 2/30 ΤΟ 2/100 Count
Viable ΤΡΙ Range 6 Το 50 ΤΡΙ (S&Z TWIST) As Required
Spindle RPM 4000 To 12000 RPM Depends On Yarm
Machine Width 813 MM
Machine Height 1610 MM
Model: CTS-110/135
No. Of Spindles 120 132 144 156 168 180
No. Of Sections 10 11 12 13 14 15
Machine Length (FT.) 53.25 57.75 62.50 67.00 71.50 76.00
Power (HP) 5 5 7.5 7.5 10 10
Section Length 1383 MM Spindles Per Section 12
Spindle Pitch 217 MM
Take Up
Device Paper Tube 170 X I.D X O.D As Required
System Heavy Cradle / Jumper (Optional)
Capacity UP TO 2.400 KG
Feed I.D 32 X O.D 36 XL 170 MM Tube & Alu. Cops
Package Containar Dia 135 MM
Capacity UP TO 0.600 KG
Spindle Specifications
Pot Diameter 110 MM/120 MM As Optional
Pully Diameter 25 MM As Required
Pot Material S.S./Aluminum (Plasma Coating/ Nano Coating / Anodize
Spindle Drive Endless Belt
Traverse Mechanism Drum/Cam Based Traverse Gear Box For Uniform Pack
Size 145 To 156 Depends On Paper Tube Size
Feed Tensioner Device Ball & Ceramic Tensioning Pipe
Count Range 2/30 ΤΟ 2/100 Count
Viable ΤΡΙ Range 6 Το 50 ΤΡΙ (S&Z TWIST) As Required
Spindle RPM 4000 To 12000 RPM Depends On Yarm
Machine Width 813 MM
Machine Height 1610 MM
Model: CTS-110/135
No. of Spindles 120 132 144 156 168 180
No. of Sections 10 11 12 13 14 15
Machine Length (FT.) 53.25 57.75 62.50 67.00 71.50 76.00
Power (HP) 5 5 7.5 7.5 10 10
Section Length 1383 MM Spindles Per Section 12
Spindle Pitch 217 MM
Take Up
Device Paper Tube 170 X I.D X O.D As Required
System Heavy Cradle / Jumper (Optional)
Capacity UP TO 2.400 KG
Feed I.D 32 X O.D 36 XL 170 MM Tube & Alu. Cops
Package Containar Dia 135 MM
Capacity UP TO 0.600 KG
Spindle Specifications
Pot Diameter 110 MM/120 MM As Optional
Pully Diameter 25 MM As Required
Pot Material S.S./Aluminum (Plasma Coating/ Nano Coating / Anodize
Spindle Drive Endless Belt
Traverse Mechanism Drum/Cam Based Traverse Gear Box For Uniform Pack
Size 145 To 156 Depends On Paper Tube Size
Feed Tensioner Device Ball & Ceramic Tensioning Pipe
Count Range 2/30 ΤΟ 2/100 Count
Viable ΤΡΙ Range 6 Το 50 ΤΡΙ (S&Z TWIST) As Required
Spindle RPM 4000 To 12000 RPM Depends On Yarm
Machine Width 813 MM
Machine Height 1610 MM
